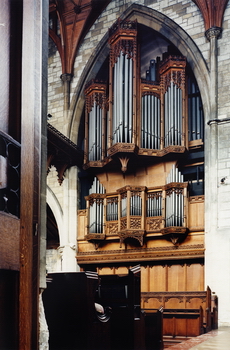

St. Oswald's Parish Church, Hartlepool, Co. Durham
History:
Ingram & Co (Hope-Jones) Hereford 1905

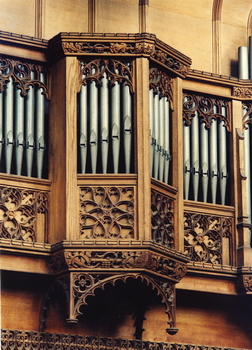

Case designed by Hicks and Charlewood, church architects; carved by Hedley of Newcastle
Great:
Rohr Gedact - 16
Open Diapason - 8
Hohl Flute - 8
Muted Viol - 8 (from Solo)
Principal - 4
Diaphonic Horn - 16 (from Solo)
Diaphonic Horn - 8 (from Solo)
Swell:
(Diapason Phonon - 8 (73 pipes)
String Gamba - 8 (73 pipes)
Flute Dolce - 8 (73 pipes)
Quintadena - 4 (73 pipes)
Orchestral Oboe - 8 (73 pipes)
Tuba - 8
Tremulant
Choir:
Muted Viol - 16 (from Solo)
Muted Viol - 8 (from Solo)
Muted Viol - 4 (from Solo)
Lieblich Gedact - 8
Viol d'Orchestre - 8 unenclosed
Viol Céleste - 8 tc. unenclosed
Phoneuma - 8
Fluˆto Traverso - 4
Clarinet - 8
Vox Humana - 8
Tremulant
Solo:
Muted Viol - 16 C
Muted Viol - 8 C
Muted Viol - 4 C
Diaphonic Horn - 16 (west end)
Diaphonic Horn - 8 (west end)
Pedal:
Double Open Diapason - 32 A
Open Diapason - 16 A
Bourdon - 16 B
Muted Viol - 16 (from Solo)
Flute - 8 B
Octave Muted Viol - 8 (from Solo)
Ophicleide - 16 ext. of Swell Tuba 8 (enclosed)
Diaphonic Horn - 16 (from Solo, West end)
Diaphonic Horn - 8 (from Solo, West end)
Couplers:
Swell octave
Swell suboctave
Swell to Great
Swell octave to Great
Swell suboctave to Great
Swell to Choir
Choir to Great
Choir to Swell
Choir Sub Octave to Swell
Choir Octave to Great
Choir Sub Octave to Great
Swell to Pedal
Swell Octave to Pedal
Great to Pedal
Choir to Pedal
Compass:
manual: C - c '''' 61 notes
pedal: C - f ' 30 notes radiating and concave
Accessories:
5 combination pedals to Pedal organ
5 combination keys to Great organ (pp, mf, f, Swell couplers on and off)
5 combination keys to Swell organ (pp, mf, f, Swell octave couplers on and off)
5 combination keys to Choir organ (pp, mf, f, Choir coupler on and off)
3 second touch tabs over and between Great and Swell couplers
2 rocking tablets to tremulants
rocking tablet for Great organ second touch
ventil each to Open Diapason 16', Diaphones, Viol (left hand);
ventil to Bourdon 16' (right hand)
ventil to Ophicleide 16 and Diapason Phonon Bass (right hand)
Combination pedals pre-set to: 1. Ped Bourdon + Swell to Pedal
2. Ped Bourdon and Flute + Swell to Pedal
3. Ped Open Diapason, Bourdon, Flute, Muted Viol + Swell to Pedal
4. Ped Open Diapason, Bourdon, Flute, Muted Viol, Ophicleide + Sw to Ped
Great to Pedal toe reverser
electropneumatic key and stop action
balanced swell pedals to Swell and Choir
electric blowing
West end Diaphonic Horn winded from main organ

A 10" x 8" colour photograph or high resolution image is available from the original. Please contact us for further details
