Yarmouth Minster, Great Yarmouth, Norfolk
History:
Hill, 1882/1908, for St. Mary the Boltons, West Brompton
Compton, 1960, transferred to Great Yarmouth, rebuilt and electrified with two detached consoles: main 3-manual nave console and chancel stopkey console providing reduced 2-manual specification

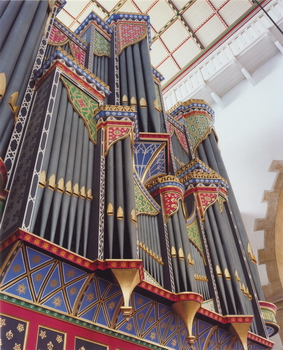

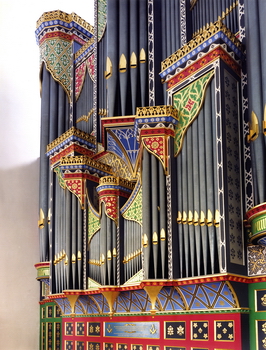

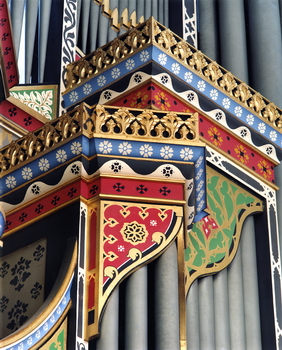

Casefront by Stephen Dykes-Bower
Couplers and stops marked * are available on chancel console
Great:
Double Open Diapason - 16
Open Diapason - I 8
Open Diapason - II 8*
Spitz Flöte - 8*
Hohl Flöte - 8
Stopped Diapason - 8*
Octave - 4
Principal - 4*
Twelfth - 2 2/3
Fifteenth - 2
Mixture - III 17.19.22
Cymbel - III 22.26.29
Trombone - 16
Tromba - 8
Octave Tromba - 4
Tuba - 8
Swell:
Lieblich Bourdon - 16
Open Diapason - 8*
Salicional - 8*
Voix Celeste - 8*
Lieblich Gedeckt - 8*
Principal - 4*
Nason Flute - 4*
Fifteenth - 2*
Mixture - III 15.19.22
Double Trumpet - 16
Cornopean - 8*
Oboe - 8*
Clarion - 4
Tremulant
Choir:
Quintaton - 16
Gemshorn - 8
Viole d'Orchestre - 8
Viol d'Amour - 8
Dulciana - 8
Vox Angelica - 8TC
Flauto Traverso - 8
Vienna Flute - 4
Nazard - 2 2/3
Flageolet - 2
Contra Bassoon - 16
Clarinet - 8
Orchestral Oboe - 8
Tuba - 8 from Great
Tremulant
Pedal:
Sub Bass - 32 (lowest octave Compton Polyphone)
Open Wood - 16
Open Metal - 16* from Great
Violone - 16* enclosed in Swell
Bourdon - 16*
Echo Bourdon - 16* from Swell
Octave - 8
Violoncello - 8*
Bass Flute - 8*
Fifteenth - 4
Flute - 4*
Larigot - 2 2/3
Twenty Second - 2
Posaune - 16
Posaune - 8
Clarion - 4
Couplers:
Swell Octave*
Swell Sub Octave*
Swell to Great*
Swell Octave to Great*
Swell Sub Octave to Great*
Swell to Choir
Choir to Great
Swell to Pedal*
Great to Pedal*
Choir to Pedal
Great Reeds to Choir
Compass:
Manual: C - c'''' 61 notes
Pedal: C - g' 32 notes
Nave Consol:
7 double touch pistons for Great and Pedal
6 double touch pistons for Swell and Pedal
6 double touch pistons for Choir and pedal
7 toe pistons to Pedal
3 pistons for Pedal couplers
Piston for Swell to Great
Toe pistons for Posaune 16' and Great to Pedal;
General cancel piston
Balanced swell pedals with indicators for Swell and Choir
Second-touch cancel movement to all unison drawknobs

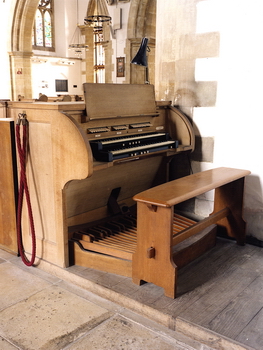

Chancel Consol:
3 double touch pistons to Great
4 double touch pistons to Swell
3 reversible coupler pistons
General cancel piston
Balanced swell pedal
Second-touch cancel movement to all unison stopkeys
Accessories:
All pistons adjustable on setter board
Electric blowing
