All Saints, Carshalton, Surrey
History:
Henry Willis 1895
Henry Willis III 1932
Percy Daniel 1986

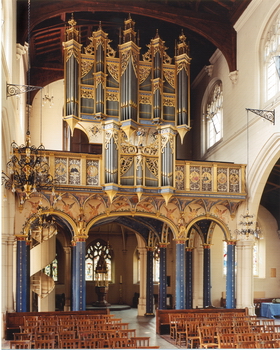

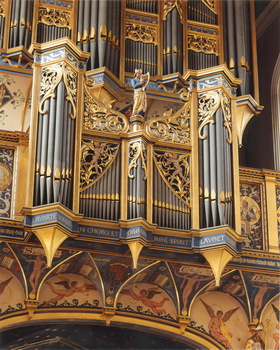

Casework Sir Ninian Comper 1932
Great:
Lieblich Bourdon - 16 prepared for
Open Diapason No.1 - 8
Open Diapason No.2 - 8
Claribel Flute - 8
Principal - 4
Flûte Couverte - 4
Fifteenth - 2
Mixture - II
Tromba - 8
Swell:
Open Diapason - 8
Lieblich Gedackt - 8
Salicional - 8
Vox Angelica - 8 full compass
Gemshorn - 4
Flûte Triangulaire - 4
Mixture - III
Waldhorn - 16
Oboe - 8
Trumpet - 8
Clarion - 4
Tremulant
Choir:
Gedackt - 8
Viola-da-Gamba - 8
Dulciana - 8
Nason Flute - 4
Nazard - 2 23
Flautino - 2
Terz - 1 35
Clarinet - 8
Tromba - 8
Tremulant
Pedal:
Resultant Bass - 32
Open Bass - 16
Bourdon - 16
Lieblich Bourdon - 16 prepared for
Octave - 8
Flute - 8
Super Octave - 4 prepared for
Trombone - 16 no bottom octave
Couplers:
Swell octave
Swell suboctave
Swell unison off
Choir couplers as Swell
Swell to Great)
Swell to Choir) also at sub and octave pitch
Choir to Great)
Great to Pedal
Swell 8 Pedal)
Choir 8 Pedal) also at octave pitch
Compass:
Manual: C - c 61 notes
Pedal: C - f 30 notes radiating & concave
Accessories:
5 Swell pistons plus cancel
5 Great pistons plus cancel
5 Choir pistons plus cancel
5 toe pistons to swell
Reversible thumb pistons for main couplers, Trombone,
Tromba, Sw and Choir Tremulants
Gt & Pedal Combinations Coupled
Coupler & Octave Coupler Cancel
General Cancel Thumb Piston
Balanced Swell pedals for Swell and Choir
5 General Pistons
Toe pistons to Full Organ, Great to Pedal, Pedal Cancel, General Cancel,
Blowing=Electric


A 10" x 8" colour photograph or high resolution image is available from the original. Please contact us for further details
